Programmer's Guide §

To overcome any misalignment due to hardware and software differences the following listings provide the hardware and firmware version used. Please use at least the same firmware revision when following this guide.

Firmware §

B96 Firmware Version: BG96MAR03A03M1GA

Hardware §

...
LTE OPEN EVB KIT v1.1
...

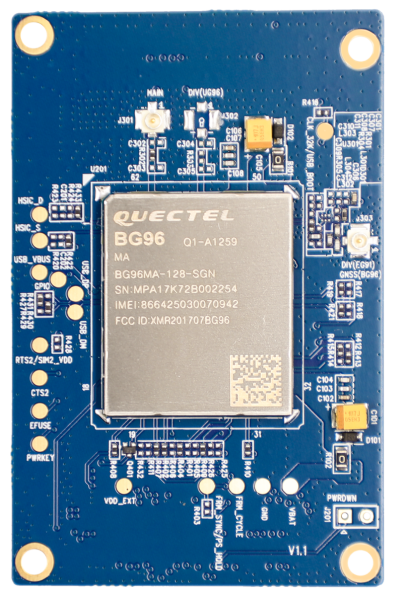

BG96 TE-A

1 Connect to the Target §

Open the program and select the Quectel USB DM Port (COM?) where ? is the enumarated DM port number.

Click the search icon and navigate to folder /datatx

...

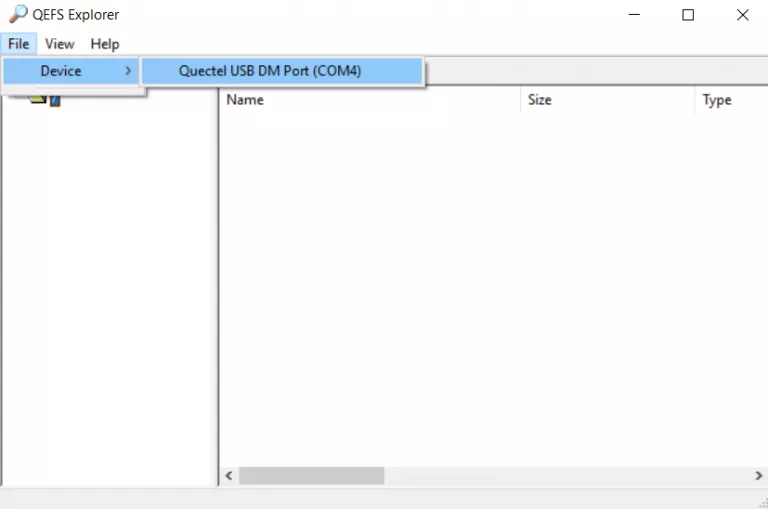

QEFS Explorer Connected to COM4.

2 Load the files §

Drag and drop the files listed below to QEFS Explorer window on /datatx and accept the default options. Finally reboot the module.

noomiojs-X-X-X.bin oem_app_path.ini app.js

...

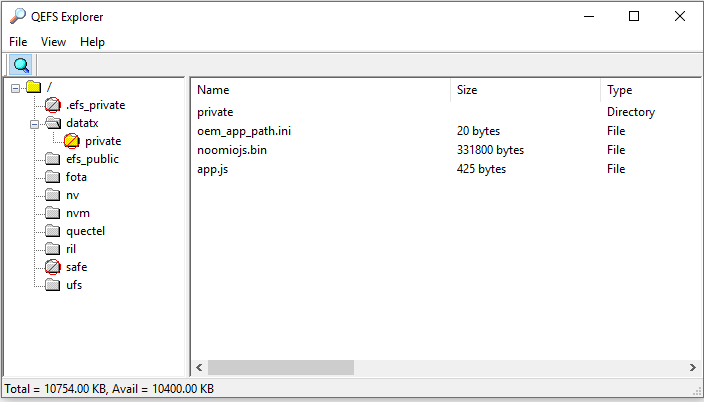

QEFS Explorer Connected to COM4 with files loaded.
